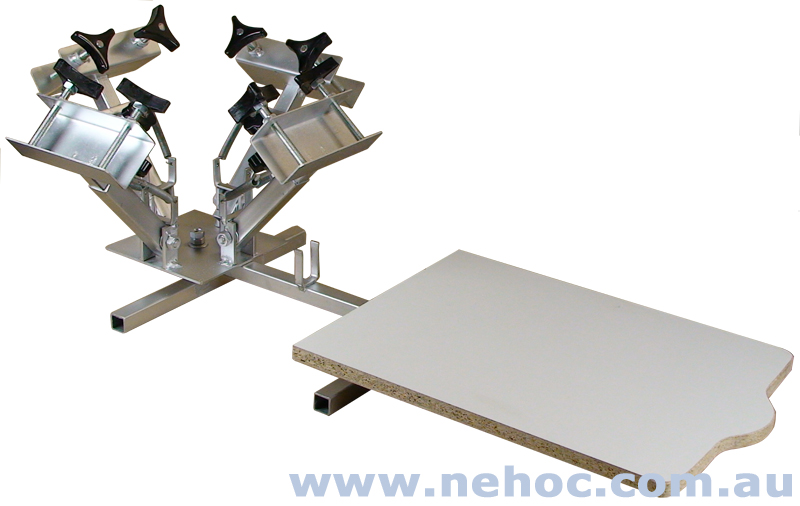

SPJ-M44 Arm Metal Jig

Product Code: SPJ-M4

Our low cost entry model for multiple colour using a metal jig.

A removable printing board (t-shirt board comes fitted), this jig is best suited to applications that benefit from a board for printing custom, odd shape or small items i.e. babies clothes, pet blankets, raised objects, sleeves, oversize bags, long garments, dress material, etc.

This model uses pin registration of the arms when lowered to provide accurate registration of prints.



  • Product Home
  • Specifications
  • Accessories
  • Support

Key Features



Accurate registration

Adjustable spring holders keep frame raised between prints

Adjustable arms

Removable t-shirt board enables fitting of custom boards

Round neck for fast & accurate alignment of t-shirts

Clamps also suitable for 'off contact' printing - plastics & metals

Strong metal construction

Handles all frame types and sizes



Usage



IS44 - Metal Jig Assembly Instructions

IS30 Single colour registration instructions

IS31 Single colour registration instructions



Cleaning

Clean with damp cloth only. Do not soak wood in water or hose.





Related Links

IS08 - 'Off contact' printing

IS13 - Colour separating designs

IS25 - Screen printing technique

IS30 - Registering Single Colours using a jig

IS31 - Registering Multiple colours using a jig

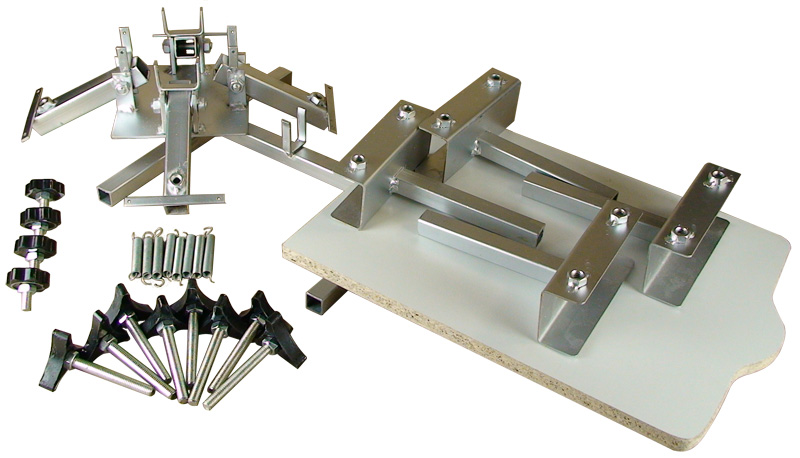

SPJ-M4 ContentsContents

Supplied in pack format with minor assembly required:

1 x Base with t-shirt board pre-assembled

4 x Arms

4 x Arm attachment knobs

8 x Arm clamp knobs

8 x Arm springs

Assembly instructions

IS30 Single colour registration instructions

IS31 Single colour registration instructions



SPJ-M4 flat packView large image . .



Specifications



Construction: Metal base/ wooden board

Operating Size (WLH): 420mm x 870mm x 280mm

Board Type: Removable t-shirt

Board Size: 295mm x 400mm

Clamp Size: 55mm/ adjustable spring

Item Weight: 6.74Kg

Pack Weight: Cbm 25.578Kg



Price and Availability

All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.

Due to the web site upgrade this information is currently unavailable.

S-9112Plastic Height Adjusters
S-9112
SPJ-M1Multiple colour T-shirt jig
SPJ-4SK

Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.

FAQ's

There are no FAQ's for this product.







Page Information:

Level: Beginner

< Previous: 4 Arm T-shirt Jig (wood)

> Next: 4 Arm Metal Jig with Bearing Hub and Bearing Registration

Products: SPJ-M4 4 Arm metal jig

Last modified: 14 July, 2009
