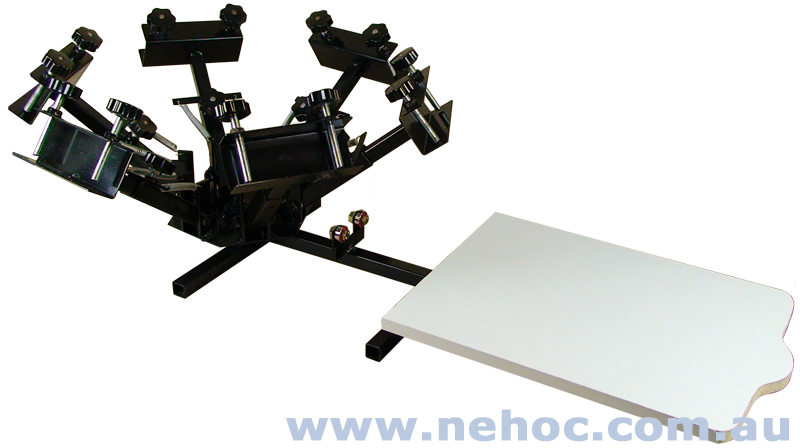

SPJ-M6B6 Arm Metal Jig with Bearing Hub & Registration

Product Code: SPJ-M6B

Print up to six colours using this model with a bearing hub for ultra smooth rotation of the arm, plus bearing guides to speed the alignment action as the arms are engaged for printing.

A removable printing board (t-shirt board comes fitted), this jig is best suited to applications that benefit from a board for printing custom, odd shape or small items i.e. babies clothes, pet blankets, raised objects, sleeves, oversize bags, long garments, dress material, etc.



  • Product Home
  • Specifications
  • Accessories
  • Support

Key Features



Accurate registration

Adjustable spring holders keep frame raised between prints

Adjustable arms

Removable t-shirt board enables fitting of custom boards

Round neck for fast & accurate alignment of t-shirts

Clamps also suitable for 'off contact' printing - plastics & metals

Strong metal construction

Handles all frame types and sizes



Usage



IS44 - Metal Jig Assembly Instructions

IS30 Single colour registration instructions

IS31 Single colour registration instructions



Cleaning

Clean with damp cloth only. Do not soak wood in water or hose



Contents

Supplied in pack format with minor assembly required:

1 x Base with t-shirt board pre-assembled

2 x Alignment bearings

2 x Alignment bearing attachment knobs

2 x Alignment bearing attachment washers

6 x Arms

6 x Arm attachment knobs

12 x Arm clamp knobs

12 x Arm springs

Assembly instructions

IS30 Single colour registration instructions

IS31 Single colour registration instructions



View large image . .



Specifications



Construction: Metal base/ wooden board

Operating Size (WLH): 550mm x 1015mm x 300mm

Board Type: Removable t-shirt

Board Size: 295mm x 400mm

Clamp Size: 65mm/ adjustable spring

Item Weight: 9.17Kg

Pack Weight: Cbm 41.86Kg



Price and Availability

All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.

Due to the web site upgrade this information is currently unavailable.

S-9112Plastic Height Adjusters
S-9112

Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.

FAQ's

There are no FAQ's for this product.
