Screen Printing Imaging Systems

Product Code: S-868, TCA4 and TCA3

Our screen imaging systems use RISO ScreenMaster Thermal Screen Mesh to create professional quality screen printing screens for t-shirts, fabrics, wood, paper and other applications.

Starting with the low cost entry level NEHOC Screen Printing Kit, as your screen volume grow you can progress up into the Thermal-Copier range which eliminate the Print Lamps of the S-868 kit - lowering your overall imaging costs.

Available Models

S-868 NEHOC Screen Printing Kit logo
Print lamp Imaging Technology Makes A5 size Create A4 and larger with extra equipment Create A3 and larger with extra equipment Create A2 and larger with extra equipment Maximum A2 print size
S-868 NEHOC Screen Printing Kit

NEHOC Screen Printing Kit

Imaging RISO ScreenMaster Mesh for t-shirts and fabric applications.


A4 Thermal-Copier logo
Thermal-Copier Imaging Technology Makes A5 size Makes A4 size Maximum A4 print size Maxiumum 210mm image width
TCA4-SP

Screen Printing Model

Imaging RISO ScreenMaster Mesh for t-shirts and fabric applications.

TCA4-TM

Tattoo Model
Imaging thermal tattoo spirit masters for design transfer before tattooing.


A3 Thermal-Copier logo
Thermal-Copier Imaging Technology Makes A5 size Makes A4 size Makes A3 size Maximum A3 print size Maxiumum 300mm image width
TCA3-SP

Screen Printing Model

Imaging RISO ScreenMaster Mesh for t-shirts and fabric applications.

TCA3-TM

Tattoo Model
Imaging thermal tattoo spirit masters for design transfer before tattooing.

Model Comparison

  S-868  NEHOC Screen Printing Kit
A3 Thermal Copier
A4 Thermal Copier
Product
Imaging System
Print Lamp Imaging Technology
(2 lamps per process)
Electronic with
reusable heat lamp
Electronic with
reusable heat lamp
Max. width of artwork
Unlimited
300mm
210mm
Max. Print Size Available
A2
A3
A4
Cost for A5/ A4/ A3 Screen**
$5.85 / $11.70 / $23.96
$1.86 / $3.72 / $8.00
$1.86 / $3.72 / Not Available
- # Print Lamps Used
2 / 4 / 8
0
0
Suitable Mesh Grades
70Mesh & 100Mesh
(also 200Mesh PRINT GOCCO Masters)
70Mesh & 100Mesh only
70Mesh & 100Mesh only
Max. width of carrier
Not applicable to this model
300mm
215mm
Construction Type
PET
Powder-coated Metal
Powder-coated Metal
Machine Colour
Orange/ Yellow
Grey
Black
Microprocessor controlled
Not applicable to this model
Yes
Yes
Nominal voltage
N/A (2 x AA Batteries)
230 V~ 50 Hz
230 V~ 50 Hz
Nominal current
1.5 A
14.8 A
11.8 A
Power consumption (max.)
Not applicable to this model
1700 W
1350 W
Fuse: Pushmatic Circuit Breaker
Not applicable to this model
20 A
20 A
- Bulldog Electric Products
Not applicable to this model
tested with Pushmatic C/B
-
Height
170mm
110mm
110mm
Depth
290mm
295mm
180mm
Width
160mm
520mm
450mm
Weight
1.21Kg
8.4Kg
6.9 Kg
Max. width of artwork
Unlimited
300mm
210mm
Max. width of carrier
Not applicable to this model
300mm
215mm
Temperature signals
Not applicable to this model
LED
None
Cooling
Not applicable to this model
Dual fans + software controlled
Dual fans only
Manual Feed Switch
Not applicable to this model
Yes
Yes
Instructions
Users Guide + CD-ROM
(Full Operation Manual on CD)
Printed Colour Manual + CD-ROM
Printed Colour Manual + CD-ROM
Exposed sample
No
Yes
Yes
Safety: CE Certification
Not applicable to this model
Yes
Yes
Automatic overheat protection
Not applicable to this model
Yes
Yes
- Dual temp. sensors
Not applicable to this model
Yes
No
- Rotation control sensors
Not applicable to this model
Yes
No
Power-cord incl. grounding
Not applicable to this model
Yes
Yes
Manufacture Warranty
1 Year*
1 Year*
1 Year*

* 30 Days initial warranty with additional 11 month warranty upgrade upon validation of machines warranty = 1 Year.

** Cost prices using S-203-RF 70mesh 30cm x 20M Refill Pack



Discontinued Models

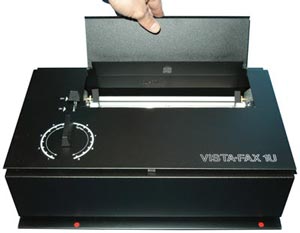

VistaFax Thermal-Copier

VistaFax 1UF

Discontinued in December 2004 when the manufacturing company Memofax closed.

VistaFax was available in 1UF (pictured) and 2UF format.

Commonly purchased and re branded under different names such as MemoFax, GBC FordiFax, Fordifax, Memo copy fax, Memo thermo fax and FordiFax - all were commonly 1UF models.

Similar operation to the new A4 Thermal-Copier model, however VistaFax machines use a drive cone and many mechanical parts to operation, causing greater repairs when parts break or wear.

Spare parts for this model remain available.

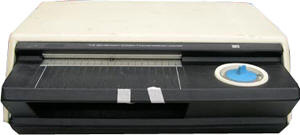

3M Thermo Fax

3M Thermo Fax

Discontinued in the early 1990's, some 2nd hand models remain available with reconditioned belts and motors.

Most models were labeled 3M, however re branding was common and machines were also called GBC ThermoFax, 3M Thermal Copier, ThermaFax and 3M FordiFax.

Using a belt driven operation to draw the copy into the machine, rollers and belts required common replacement following a jam. Support for these models is no longer available due to the lack of spare parts.

Spare parts for this model are no longer available.
