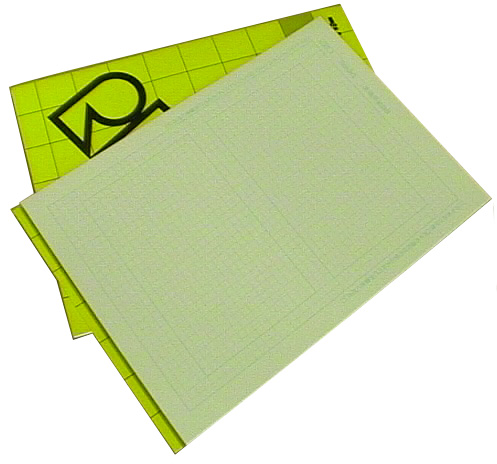

S-310  B5 Drawing paperB5 Drawing Paper

Product Code: S-310

Use when hand drawing artwork.

Each page has a 5mm grid with 1 x B5 size or 2 x B6 outlines per page.

Blue Grid does not photocopy, leaving just your finished design as the artwork.



  • Product Home
  • Specifications
  • Accessories
  • Support

Key Features



Large B5 Size

Fit 2 x B6 designs per page

Blue grid does not photocopy





Usage

For this procedure you will require an iron set to permanent press - STEAM OFF, Artwork Clean-Up Paper [S-155] and a work area which is heat resistant.

Print Lamp Systems
You will require an iron set to permanent press - STEAM OFF, Artwork Clean-Up Paper and a work area which is heat resistant.
1. Set up your machine ready for imaging before you begin
2. Tear off a piece of clean up paper sufficient to cover the design area
3. Place the artwork face up on top of several sheets of paper or a surface that will not be affected by heat
4. Lay the clean up paper on top of the artwork
5. Place the DRY iron over the paper moving the iron from one side to the other, taking no more than 2 seconds to pass over the design
6. Repeat this process a further 3 times [4 passes in total] before lifting artwork and slowly peeling off the clean up paper.
Note: Do not heat for longer than 3 seconds per pass as this will overheat the carbon
7. On a NEW FRESH piece of clean-up paper repeat steps 5 and 6
8. On a third piece repeat steps 5 and 6. By this stage there should be a clear carbon image transferred onto the clean up paper. This is normal, if this is not occurring see ‘points to note’ below
9. On a fourth and final piece repeat steps 5 and 6. After this your artwork will be warm and paper noticeably crisp - you are now ready to immediately image your design.

Thermal-Copier Systems
1. Tear off a piece of clean up paper sufficient to cover the design area
2. Place your artwork face up in your Thermal Carrier and lay the clean up paper over the artwork. Ensure the clean up paper covers all the design or this will image to the front of your carrier.
3. Close the cover of your carrier and insert into the machine using the required clean up setting - details in your machines operation manual [general setting is 5-6]
4. Open the carrier and peel the clean up paper off the artwork - you can now image your screen.
NOTE: Some laser printers contain excess carbon and may require a 2nd pass, using a new piece of clean up paper, to remove the excess carbon before imaging.

Further usage details available in:

N8525 Screen Correction Manual





Cleaning

Clean-Up Paper is discarded immediately after use and does not require cleaning.

Store in a dry area.

Contents

Pad 50 Sheets.

View large image . .

Specifications



Item Weight [Kg]: 0.270

Pack Length: 185mm

Pack Width: 260mm

Pack Height: 8mm

Cbm: 0.096 Kg





Price and Availability

All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.



Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.

FAQ's



What temperature do I set the press to?

Do I need to add water and/or use the steam option?

Why is steam coming from the design?

How long do I set for - when do I know the prints are set?

What happens if I don't set the inks for long enough?



Q) What temperature do I set the press to?
You must adjust the press to suite the type of fabric as overheating may cause burning of the fabric.
Cotton = cotton setting with Cotton/ polyester = poly setting

If unsure it's always best to start at a lower setting and test the first garment, you can always increase the setting slightly after you begin if the first prints are not heating the garment.

Never overheat the garment as this will cause burning to the fabric - it's better to set for 15-20 seconds with a short 5 second break and repeat a few times than try to set for 1 minute continuously.

Q) Do I need to add water and/or use the steam option?
No there is no need to use the steam option, the press will turn on and work normally without water.
As you are trying to eliminate the water based medium from the ink and dry the print out, steam will make this process very difficult.

Q) Why is steam coming from the design?
This is the water based medium heating up and coming out of the design as steam - this is normal.
Steam starts to appear once the design comes up to temperature, then starts to slow and disappear half way through the setting process.

If a print is completely dry (more than 5 days old) no steam may appear at all and will require setting for 30-40 seconds only. If a print is wet and no stream is present you will need to increase the temperature of the press.

Q) How long do I set for - when do I know the prints are set?
How long is a piece of string? Generally speaking, the first 20 seconds of the setting process brings the ink and garment up to temperature, the next 20 seconds eliminates the water based medium (steam rises), the next 20 seconds starts the pigment activation and setting of the ink.
- Large or solid designs will require a longer setting period as there is more volume of ink to activate and set.

A minimum of 1 minute is normally required for almost any print, increasing up to 3 minutes for wet prints.

As the actual timing varies on the design size, how long since it's been printed and the volume of ink in the design. A simple rule to start with is that when steam stops rising you are half way through the setting process.
e.g. If steam stops
rising after 40 seconds (2 presses), your setting time is 1 minute 20 seconds (4 presses).

Q) What happens if I don't set the inks for long enough?
After 5 minutes the inks will not readily wash out of the garment and are starting to air dry. When washed, water will begin to attack the un activated pigments dilute the medium coating the fibres of the fabric. It's this removal of the pigments which causes the design to fade
Further washing will continue the fading process for up to 10 washes, where no more pigment can be removed





Page Information:

Level: Beginner to Advanced

< Previous: S-035 Artwork Layout Sheets

> Next: S-138 Photo Dot Screen

Products: S-310 B5 Drawing Paper - Pad 50 Sheets
