Teflon Thermal Carriers
Product Code: CS04 and CS03
Carriers are used to hold the items when passing through the Thermal-Copier to stop designs wrapping around the glass roller and causing a jam.
Artwork and RISO ScreenMaster are held together and run through the machine to create an imaged screen printing screen. Full instructions in the A4 Thermal-Copier Operation Manual, see Product Home below.
Tattoo Sprit Masters
Artwork and Tattoo Spirit Masters (with protective sheet removed) are held together and run through the machine to create a tattoo stencil. Full instructions in the A4 Thermal-Copier Operation Manual, see Product Home below.
|A4 Teflon Carrier
Premium quality long lasting carrier for A4 and A3 Thermal-Copiers
|A3 Teflon Carrier
Premium quality long lasting carrier for A3 Thermal-Copiers
- Product Home
Trade quality Teflon FEP cover for long usage life
High temperature Kapton tape header tape
Cut header corners to avoid jamming
250GSM castcoated backing sheet - solid backing makes insertion easier
Protective storage cover
ScreenMaster: Cut ScreenMaster to size and insert into the carrier over your artwork, with the film side (smooth) facing down against the artwork.
Thermal Tattoo Paper: Remove the protective paper from 3 layered sheet and insert artwork, face up, behind the carbon sheet.
Turn the thermal copier on and feed the carrier into the machine at the required setting (see manual for machine setting details).
When the carrier begins to emerge from rear, hold/pull and support the carrier, then remove it from machine.
Open the carrier to remove your design and return carrier to the protective envelope immediately.
This cover of this carrier is sensitive to static and will attract dust.
To maximise the life of this carrier:
Clean top and bottom of cover with a lint free cloth before each use
Return to storage pack immediately after use, or stored outside the protective cover
Do not leave open or exposed for long periods of time

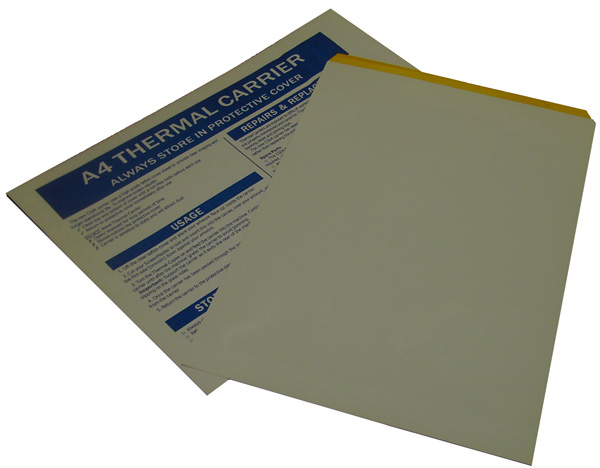

CS04 A4 Thermal Carrier View large image . .

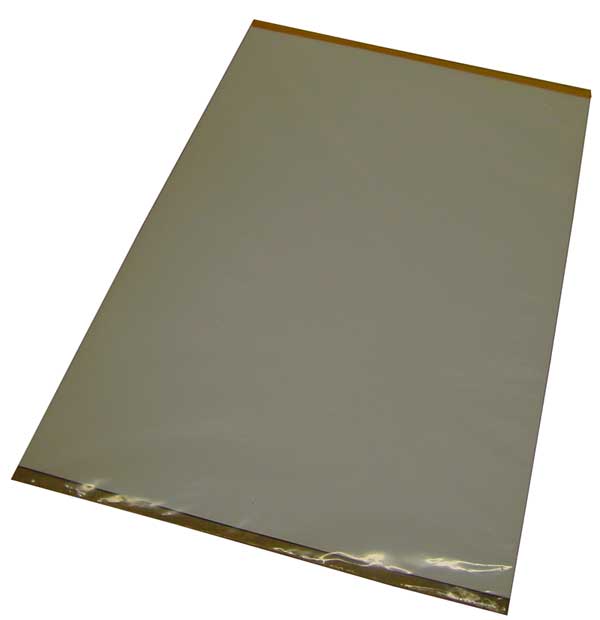

CS03 A4 Thermal Carrier View large image . .
Item Weight [Kg]: 0.08
Cbm: 0.038 Kg
CS03 A3 Teflon Carrier
Item Weight [Kg]: 0.15
Cbm: 0.07 Kg
Price and Availability
All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.
Ask a Question
Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.
Q) What temperature do I set the press to?
You must adjust the press to suite the type of fabric as overheating may cause burning of the fabric.
Cotton = cotton setting with Cotton/ polyester = poly setting
If unsure it's always best to start at a lower setting and test the first garment, you can always increase the setting slightly after you begin if the first prints are not heating the garment.
Never overheat the garment as this will cause burning to the fabric - it's better to set for 15-20 seconds with a short 5 second break and repeat a few times than try to set for 1 minute continuously.
Q) Do I need to add water and/or use the steam option?
No there is no need to use the steam option, the press will turn on and work normally without water.
As you are trying to eliminate the water based medium from the ink and dry the print out, steam will make this process very difficult.
Q) Why is steam coming from the design?
This is the water based medium heating up and coming out of the design as steam - this is normal.
Steam starts to appear once the design comes up to temperature, then starts to slow and disappear half way through the setting process.
If a print is completely dry (more than 5 days old) no steam may appear at all and will require setting for 30-40 seconds only. If a print is wet and no stream is present you will need to increase the temperature of the press.
Q) How long do I set for - when do I know the prints are set?
How long is a piece of string? Generally speaking, the first 20 seconds of the setting process brings the ink and garment up to temperature, the next 20 seconds eliminates the water based medium (steam rises), the next 20 seconds starts the pigment activation and setting of the ink.
- Large or solid designs will require a longer setting period as there is more volume of ink to activate and set.
A minimum of 1 minute is normally required for almost any print, increasing up to 3 minutes for wet prints.
As the actual timing varies on the design size, how long since it's been printed and the volume of ink in the design. A simple rule to start with is that when steam stops rising you are half way through the setting process.
e.g. If steam stops rising after 40 seconds (2 presses), your setting time is 1 minute 20 seconds (4 presses).
Q) What happens if I don't set the inks for long enough?
After 5 minutes the inks will not readily wash out of the garment and are starting to air dry. When washed, water will begin to attack the un activated pigments dilute the medium coating the fibres of the fabric. It's this removal of the pigments which causes the design to fade
Further washing will continue the fading process for up to 10 washes, where no more pigment can be removed
Level: Beginner to Advanced
< Previous: S-Press Heat Press
Products: CS04 A4 Teflon Carrier and CS03 A3 Teflon Carrier
