Key Features



Accurate registration

Automatic holder keeps frame raised between prints

Easy adjustable arms for maximum range on t-shirts

Slim t-shirt guide for all sizes + print ‘off contact’

V-neck guide for fast & accurate alignment

Clamps also suitable for 'off contact' printing - plastics & metals

Strong construction with professional finish

Light weight and portable at only 8 Kg

Portable and easy to store

Handles all frame types and sizes



Usage



IS09 - Jig Assembly Instructions

IS13 - Colour separating artwork

IS30 - Registering Single Colours

IS30 - Registering Multiple Colours



Cleaning

Clean with damp cloth only. Do not soak wood in water or hose.

Contents

Supplied in pack format with minor assembly required:

1 x Base with t-shirt board and arm base pre assembled

1 x Rotating Hub

1 x Rotating Hub Knob

4 x Arms

4 x Arm attachment knob, bolt, washer and nut

8x Arm clamp screws with knobs

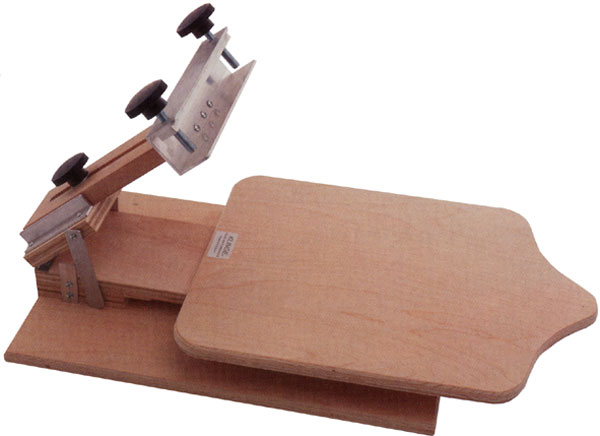

View large image . .



Specifications



Operating Size: 315mm x 330mm x 910mm

Clamp Size: Up to 32mm (1.26 inches) using plastic and up to 25mm (0.98 inches) using Metal frames

Print Arm Travel: 100mm (3.9 inches) forwards with 215mm (8.5 inches) elevation

Board Size: 315mm x 430mm (12.4 x 16.9 inches)

Item Weight: 4.3Kg (9.5lb)

Pack Weight: 9.2Kg [18Kg M3]



Price and Availability

All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.



Plastic Height Adjusters S-9112

Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.

FAQ's

There are no FAQ's for this product.
