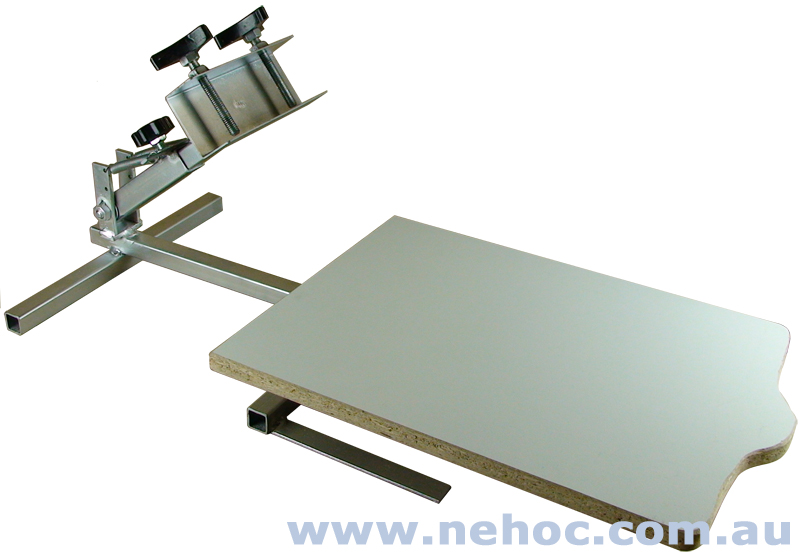

SPJ-M1Single Colour Metal Jig

Product Code: SPJ-M1

Suitable for single colour printing of t-shirts and other items.

A removable printing board (t-shirt board comes fitted), this jig is best suited to applications that benefit from a board for printing custom, odd shape or small items i.e. babies clothes, pet blankets, raised objects, sleeves, oversize bags, long garments, dress material, etc.

This model uses a fixed hinge motion to provide accurate registration of prints.



  • Product Home
  • Specifications
  • Accessories
  • Support

Key Features



Accurate registration

Adjustable spring holders keep frame raised between prints

Adjustable arm

Removable t-shirt board enables fitting of custom boards

Round neck for fast & accurate alignment of t-shirts

Clamps also suitable for 'off contact' printing - plastics & metals

Strong metal construction

Handles all frame types and sizes



Usage



IS44 - Metal Jig Assembly Instructions



Cleaning

Clean with damp cloth only. Do not soak wood in water or hose



Contents

Supplied in pack format with minor assembly required:

1 x Base with arm and t-shirt board pre-assembled

1 x Arm attachment knobs

2 x Arm clamp knobs

2 x Arm springs

Assembly instructions

IS30 Single colour registration instructions



View large image . .



Specifications



Construction: Metal base/ wooden board

Operating Size (WLH): 300mm x 700mm x 250mm

Board Type: Removable t-shirt

Board Size: 295mm x 400mm

Clamp Size: 55mm/ adjustable spring

Item Weight: 3.48Kg

Pack Weight: 13.125Kg M3



Price and Availability

All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.

Due to the web site upgrade this information is currently unavailable.

S-9112Plastic Height Adjusters
S-9112
SPJ-M1Multiple colour T-shirt jig
SPJ-4SK

Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.

FAQ's

There are no FAQ's for this product.







Page Information:

Level: Beginner

< Previous: Single Colour T-shirt Jig

> Next: 4 Arm Metal Jig

Products: SPJ-M1 Single Colour Metal Jig

Last modified: 14 July, 2009
