S-9112 Plastic Height AdjustersHeight Adjusters

Product Code: S-9112

Used to elevate the height of frames for ‘off contact’ printing, the plastic can also be use for corner registration guides.

‘Off contact’ printing, also called raised or snap printing, is used when printing non-absorbent surfaces such as glass, metal, plastic & glazed ceramics, but most commonly used when printing Opaque Fabric Ink, which contains a much thicker pigmentation then standard inks.

Plastic height adjustors are a solid plastic board that you cut to size as required, simply by scoring with a knife and breaking off - it's that easy!

Height Adjustors can be used with all screen printing jigs, jig hinges, or attached to the back of any frame with Screen Masking Tape.

  • Product Home
  • Specifications
  • Accessories
  • Support

Key Features


120 x 180mm size

Easily scored and cut down to required size

Easy to clean and re-use




Score plastic to required width/ size using a sharp blade or knife. Snap plastic at score marks to create required Height Adjusters.

Place Height Adjusters under frame in corners to elevate the frame to required height. When the correct height has ben achieved, tape Height Adjusters to frame in position using Screen Masking Tape.

Further usage details available in:

N8525 Screen Correction Manual


IS08 - Printing 'off contact'

IS34 - Printing Opaque Fabric Inks




Clean with water and dry before use.


Pack 10

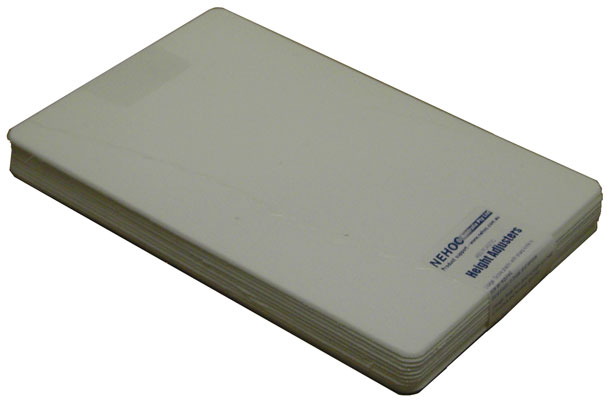

View large image . .



Item Weight [Kg]: 0.380

Length: 120mm

Width: 180mm

Height: 11mm

Cbm: 0.059 Kg



Price and Availability

All prices are online in NEHOCdirect - select the 'Just Looking' option in Step 2.

S-9102Small Metal Frame
S-9103Large Metal Frame
SPJ-SKSingle Colour Wooden T-Shirt Jig
SPJ-M1Single Colour Metal Jig
SPJ-4SK4 Arm Wooden T-Shirt Jig
SPJ-M44 Arm Metal Jig - Pin Registration
SPJ-M4B4 Arm Metal Jig with Bearing Hub & Registration
T36Screen Masking Tape


Ask a Question

Complete the Product Assistance Form for a quick reply to any question not answered in the FAQ's or training section - click here . . Select the product code listed at the top of this page.



What temperature do I set the press to?

Do I need to add water and/or use the steam option?

Why is steam coming from the design?

How long do I set for - when do I know the prints are set?

What happens if I don't set the inks for long enough?


Q) What temperature do I set the press to?
You must adjust the press to suite the type of fabric as overheating may cause burning of the fabric.
Cotton = cotton setting with Cotton/ polyester = poly setting

If unsure it's always best to start at a lower setting and test the first garment, you can always increase the setting slightly after you begin if the first prints are not heating the garment.

Never overheat the garment as this will cause burning to the fabric - it's better to set for 15-20 seconds with a short 5 second break and repeat a few times than try to set for 1 minute continuously.

Q) Do I need to add water and/or use the steam option?
No there is no need to use the steam option, the press will turn on and work normally without water.
As you are trying to eliminate the water based medium from the ink and dry the print out, steam will make this process very difficult.

Q) Why is steam coming from the design?
This is the water based medium heating up and coming out of the design as steam - this is normal.
Steam starts to appear once the design comes up to temperature, then starts to slow and disappear half way through the setting process.

If a print is completely dry (more than 5 days old) no steam may appear at all and will require setting for 30-40 seconds only. If a print is wet and no stream is present you will need to increase the temperature of the press.

Q) How long do I set for - when do I know the prints are set?
How long is a piece of string? Generally speaking, the first 20 seconds of the setting process brings the ink and garment up to temperature, the next 20 seconds eliminates the water based medium (steam rises), the next 20 seconds starts the pigment activation and setting of the ink.
- Large or solid designs will require a longer setting period as there is more volume of ink to activate and set.

A minimum of 1 minute is normally required for almost any print, increasing up to 3 minutes for wet prints.

As the actual timing varies on the design size, how long since it's been printed and the volume of ink in the design. A simple rule to start with is that when steam stops rising you are half way through the setting process.
e.g. If steam stops
rising after 40 seconds (2 presses), your setting time is 1 minute 20 seconds (4 presses).

Q) What happens if I don't set the inks for long enough?
After 5 minutes the inks will not readily wash out of the garment and are starting to air dry. When washed, water will begin to attack the un activated pigments dilute the medium coating the fibres of the fabric. It's this removal of the pigments which causes the design to fade
Further washing will continue the fading process for up to 10 washes, where no more pigment can be removed
